Build a static page with Route 53, CloudFront and S3 by CDK Python.

Nowadays, the static pages become more popular due to advances in frontend technologies like CSS and Javascript, which give users a richer and more interactive experience.

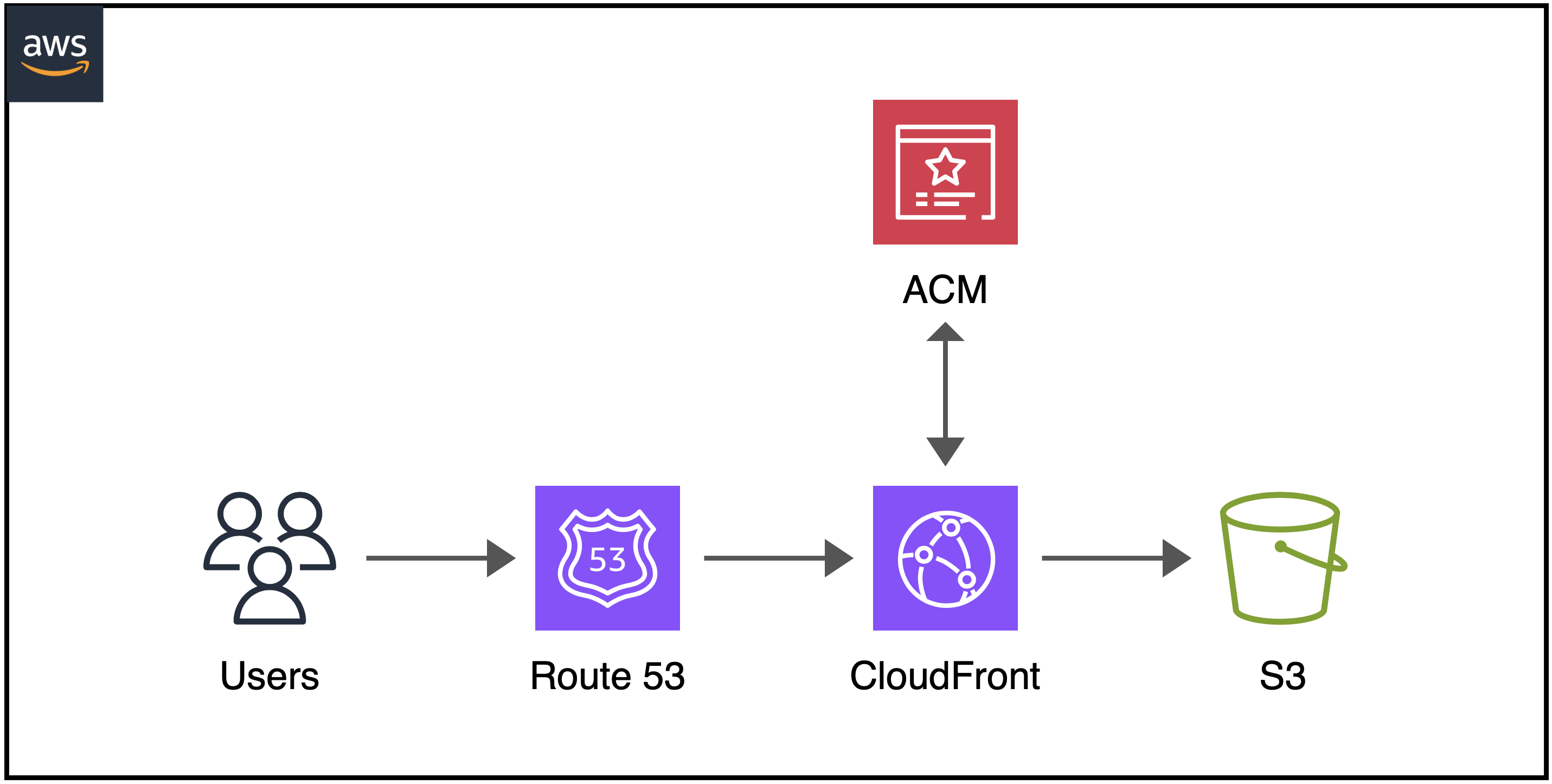

This pattern shows step-by-step how to build a static page by combination of Amazon Web Services Route 53 Hosted Zone, CloudFront Distribution and S3 Storage.

Introduction

All codes written in the CDK (Python) to automatically create a stack including domain name S3 bucket for static website hosting, a CloudFront distribution integrated with Route 53 hosted zone and ACM certificate issued by Amazon Web Services. Providing the least privilege IAM role for S3 to enable static website hosting.

Requirements

Get started with CDK

Create and go to the working folder, then initialize the CDK Python project from CLI Terminal.

mkdir cdk-staticweb
cd cdk-staticweb
cdk init app --language python

Activate Python environment.

source .venv/bin/activate

Install the required packages.

pip install -r requirements.txt

Project structure

If configured properly, the project structure will be shown under the working directory \cdk-staticweb as below:

cdk-staticweb
├── static-page
│ ├── index.html
│ └── styles.css
├── cdk-staticweb
│ ├── __init__.py
│ └── cdk-staticweb_stack.py
├── app.py
├── README.md
└── requirements.txt

Project structure rundown

  • /static-page/ - Contains index.html for static web hosting.
  • /cdk-staticweb/ - for creating the deployment stack.
  • /app.py - main project function.
  • /README.md - Introduction and Instructions.
  • /requirements.txt - for required packages' installation.

Working with AWS Management Console

Now we get started with AWS Management Console to create a hosted zone and validate the ACM public certificate issued by Amazon Web Services as a preparation step for CDK application deployment.

Route 53 hosted zone

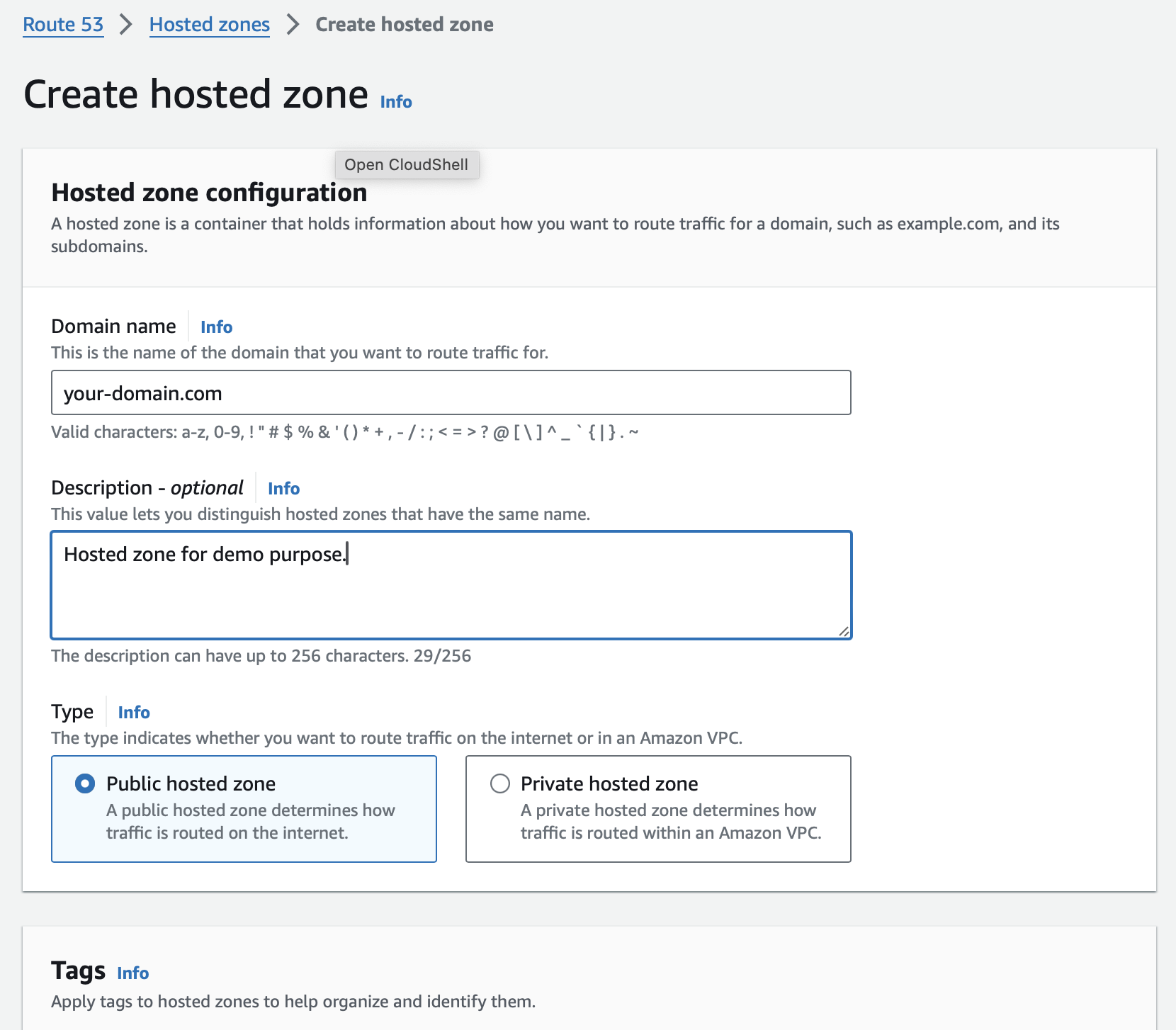

1. Create a hosted zone

Create a hosted zone with your domain name in Route 53.

Then press Create hosted zone to create a hosted zone under your domain name.

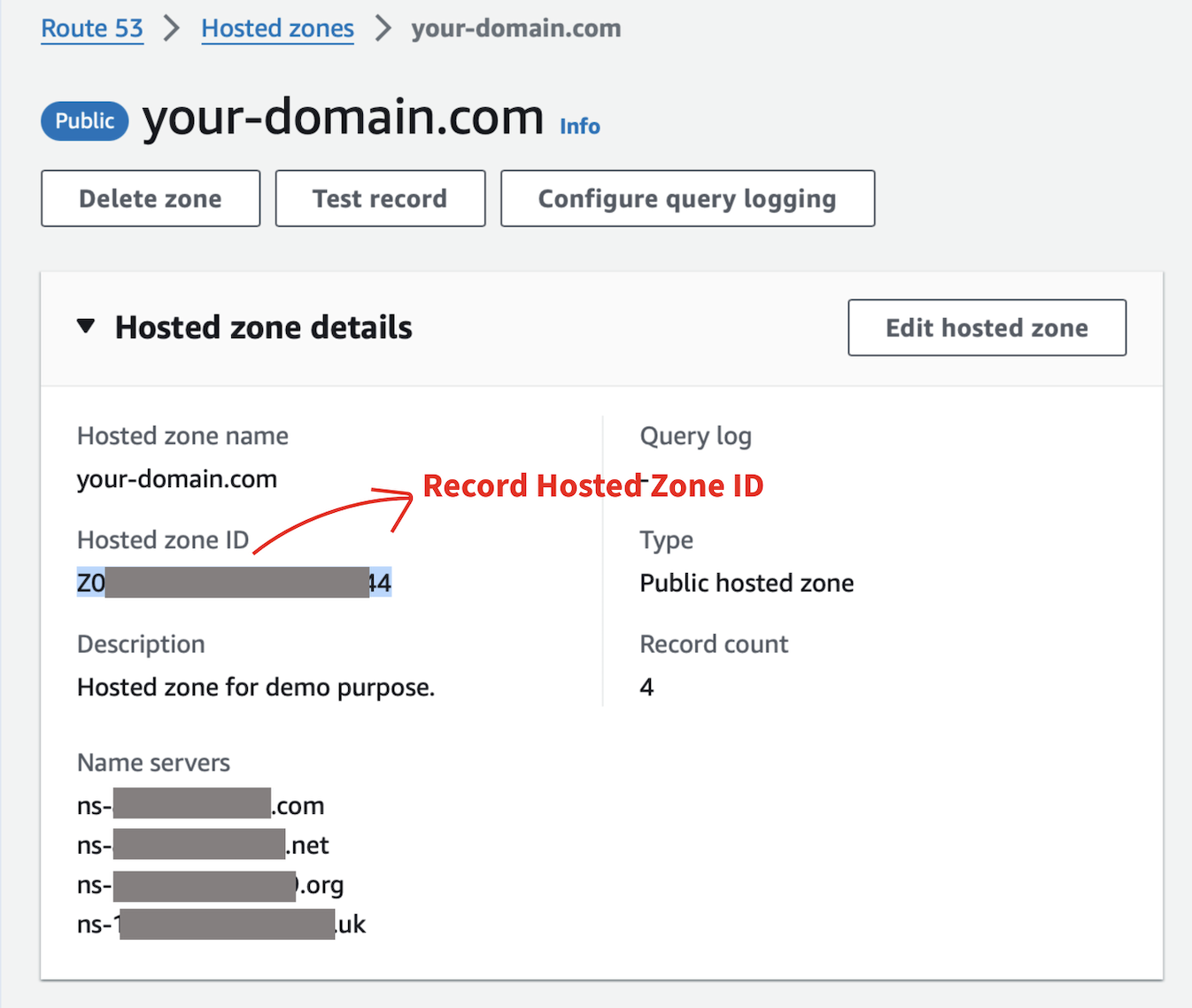

After your hosted zone created, you will find name servers in Hosted zone details. Follow these steps to configure your DNS:

  • Record all 04 Name servers listed below.
  • Go to your domain registrar to create a new DNS record with NS type for your domain then update the name servers to use with Route 53.

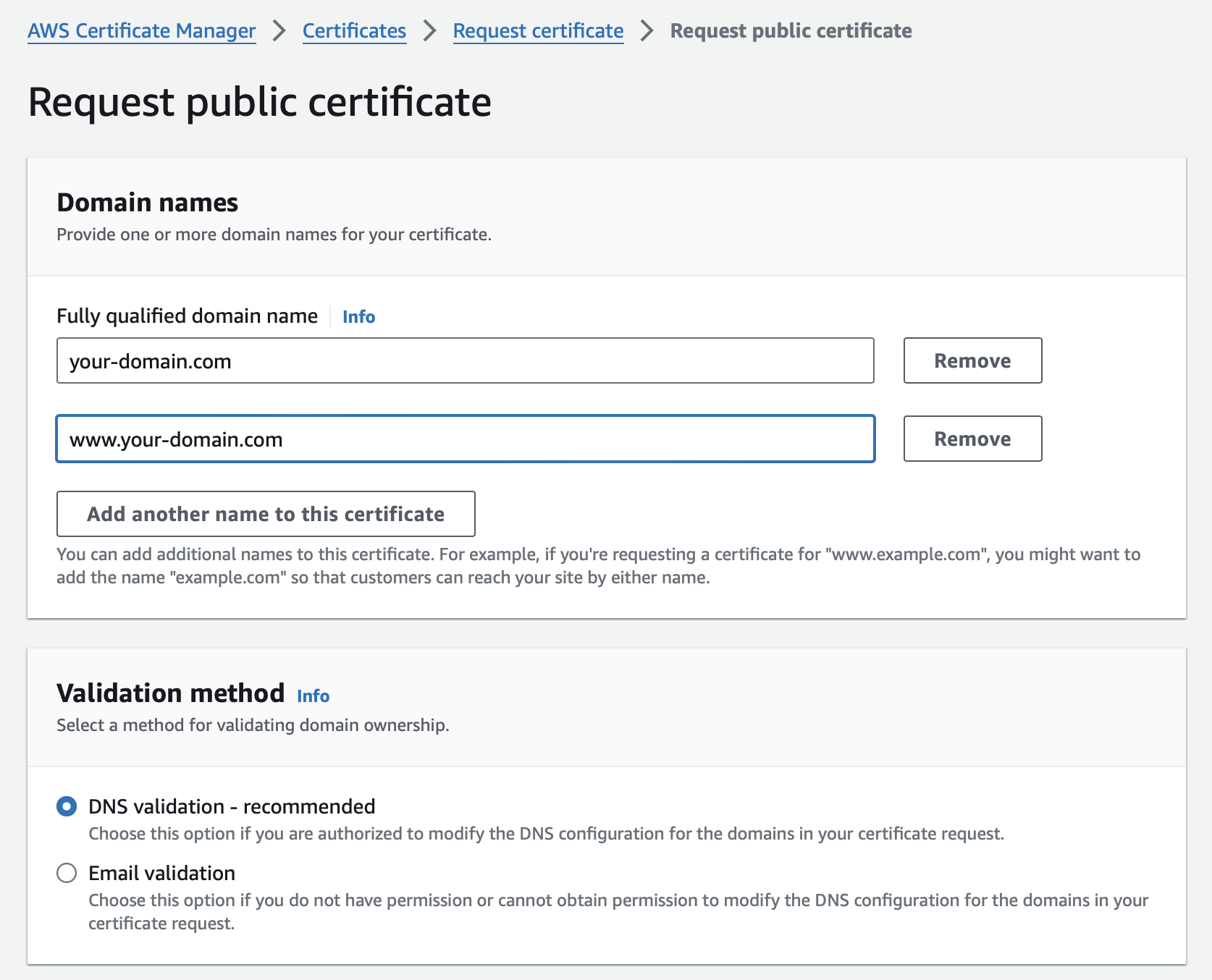

2. Request public certificate from ACM (AWS Certificate Manager)

In the scenario, you may request both your-domain.com and www.your-domain.com and DNS validation method as recommended. Then press Request.

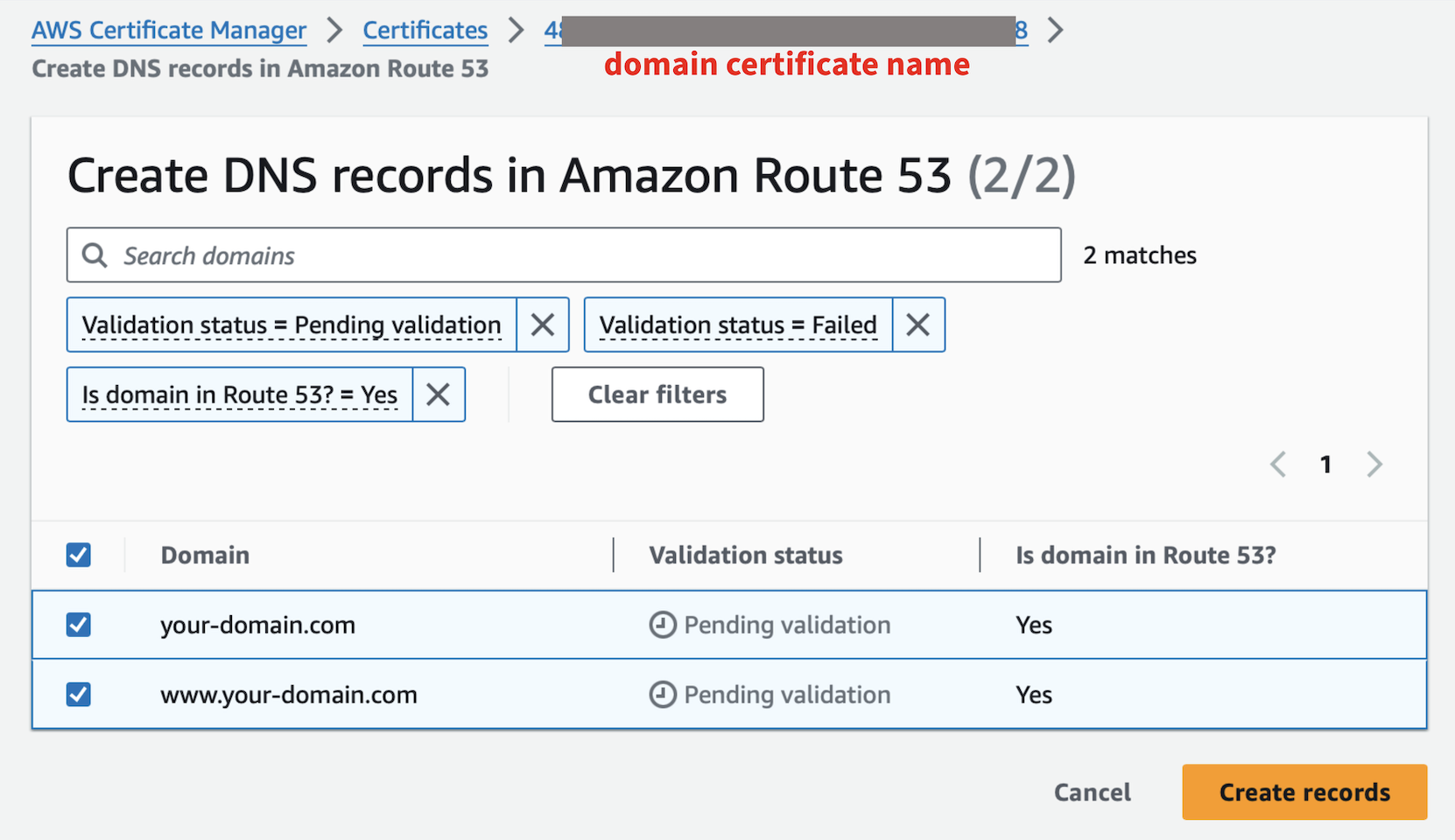

3. DNS validation

  • Press Create records for DNS validation.
  • If the validation is successful, record the Certificates name for later use in CDK deployment.

Static page preparation

Create a folder for static content.

mkdir static-page

For simple case, you can create a index.html file and save in folder static-page as below:

Static page
./static-page/index.html
<!DOCTYPE html>
<html>
<head>
<style>
.center_div {
border: 1px solid gray;
margin-left: auto;
margin-right: auto;
width: 90%;
background-color: #d0f0f6;
text-align: left;
padding: 8px;
}
</style>
</head>
<body>

<div class="center_div">
<h1>Static Page hosted on AWS S3!</h1>
<p>This page is simple html for demo purpose only.</p>
</div>

</body>
</html>

From my GitHub repo, I took the index.html built with CSS and Javascript to create a resume page deployed from Amazon API Gateway REST API as instructed in AWS API Gateway with DynamoDB.

Create CDK Stack

Main function
./app.py
#!/usr/bin/env python3
import aws_cdk as cdk
from cdk_staticweb.cdk_staticweb_stack import CdkStaticwebStack

app = cdk.App()
CdkStaticwebStack(app, "CdkStaticwebStack", synthesizer=cdk.DefaultStackSynthesizer(generate_bootstrap_version_rule=False))
app.synth()
Import necessary packages to deploy
./cdk-staticweb/cdk-staticweb_stack.py
from aws_cdk import (
Stack,
Aws,
aws_route53,
aws_route53_targets,
aws_s3,
aws_s3_deployment,
aws_iam,
aws_cloudfront,
aws_cloudfront_origins,
aws_certificatemanager
)
from constructs import Construct

class CdkStaticwebStack(Stack):

def __init__(self, scope: Construct, construct_id: str, **kwargs) -> None:
super().__init__(scope, construct_id, **kwargs)
# Your code start here
Declare your hosted zone and certificate
./cdk-staticweb/cdk-staticweb_stack.py
domain_name = "your-domain.com"
hosted_zone_id = <YOUR HOSTED ZONE ID FROM STEP 1>
domain_cert_name = <YOUR CERTIFICATE NAME FROM STEP 1>

hosted_zone = aws_route53.HostedZone.from_hosted_zone_attributes(self, "WebHostedZone",
zone_name=domain_name,
hosted_zone_id=hosted_zone_id)

arn_cert = f"arn:aws:acm:{Aws.REGION}:{Aws.ACCOUNT_ID}:certificate/{domain_cert_name}"
domain_cert = aws_certificatemanager.Certificate.from_certificate_arn(self, "DomainCert",
certificate_arn=arn_cert)
Create and configure S3 bucket as static website hosting
./cdk-staticweb/cdk-staticweb_stack.py
web_bucket = aws_s3.Bucket(self, "WebBucket",
bucket_name=domain_name,
block_public_access=aws_s3.BlockPublicAccess(block_public_policy=False),
website_index_document="index.html"
)
Add bucket policy
./cdk-staticweb/cdk-staticweb_stack.py
policy_statement = {
"Sid": "PublicReadGetObject",
"Effect": "Allow",
"Principal": "*",
"Action": ["s3:GetObject"],
"Resource": [f"{web_bucket.bucket_arn}/*"]
}
web_bucket.add_to_resource_policy(aws_iam.PolicyStatement.from_json(policy_statement))
Deploy static content into S3 bucket

CDK will write all files in static-page folder to S3 bucket.

./cdk-staticweb/cdk-staticweb_stack.py
aws_s3_deployment.BucketDeployment(self, "DeployFiles",
sources=[aws_s3_deployment.Source.asset("./static-page")],
destination_bucket=web_bucket)
Create CloudFront Distribution

Apply both domain names as your-domain.com & www.your-domain.com with same certificate.

./cdk-staticweb/cdk-staticweb_stack.py
web_distribution = aws_cloudfront.Distribution(self, "WebDistro",
enable_ipv6=True,
default_root_object="index.html",
domain_names=[domain_name, f"www.{domain_name}"],
certificate=domain_cert,
http_version=aws_cloudfront.HttpVersion.HTTP2_AND_3,
default_behavior=aws_cloudfront.BehaviorOptions(
origin=aws_cloudfront_origins.S3Origin(web_bucket)
)
)
Route traffic to CloudFront

Create alias records to route traffic both ip4 & ip6 to CloudFront distribution for both domain names.

./cdk-staticweb/cdk-staticweb_stack.py
aws_route53.ARecord(self, "DomainIp4",
zone=hosted_zone,
target=aws_route53.RecordTarget.from_alias(
alias_target=aws_route53_targets.CloudFrontTarget(web_distribution)))

aws_route53.ARecord(self, "wwwDomainIp4",
record_name="www",
zone=hosted_zone,
target=aws_route53.RecordTarget.from_alias(
alias_target=aws_route53_targets.CloudFrontTarget(web_distribution)))

aws_route53.AaaaRecord(self, "DomainIp6",
zone=hosted_zone,
target=aws_route53.RecordTarget.from_alias(
alias_target=aws_route53_targets.CloudFrontTarget(web_distribution)))

aws_route53.AaaaRecord(self, "wwwDomainIp6",
record_name="www",
zone=hosted_zone,
target=aws_route53.RecordTarget.from_alias(
alias_target=aws_route53_targets.CloudFrontTarget(web_distribution)))

CDK Deployment

# Test and create CloudFormation template
cdk synth

# Deploy appliction
cdk deploy

Checking and Testing

After deployment successfully, you will find results as below:

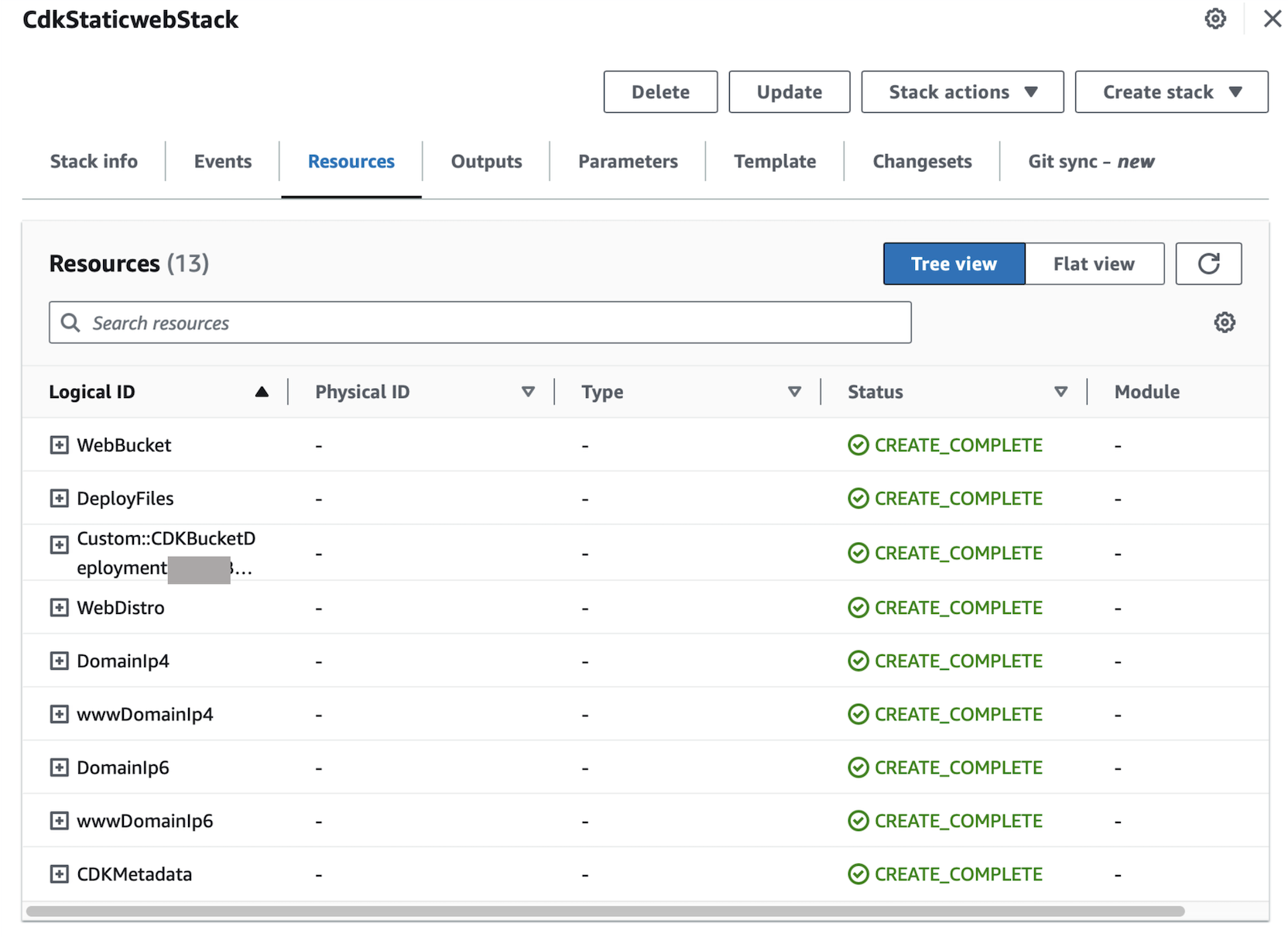

CloudFormation CDK Stack

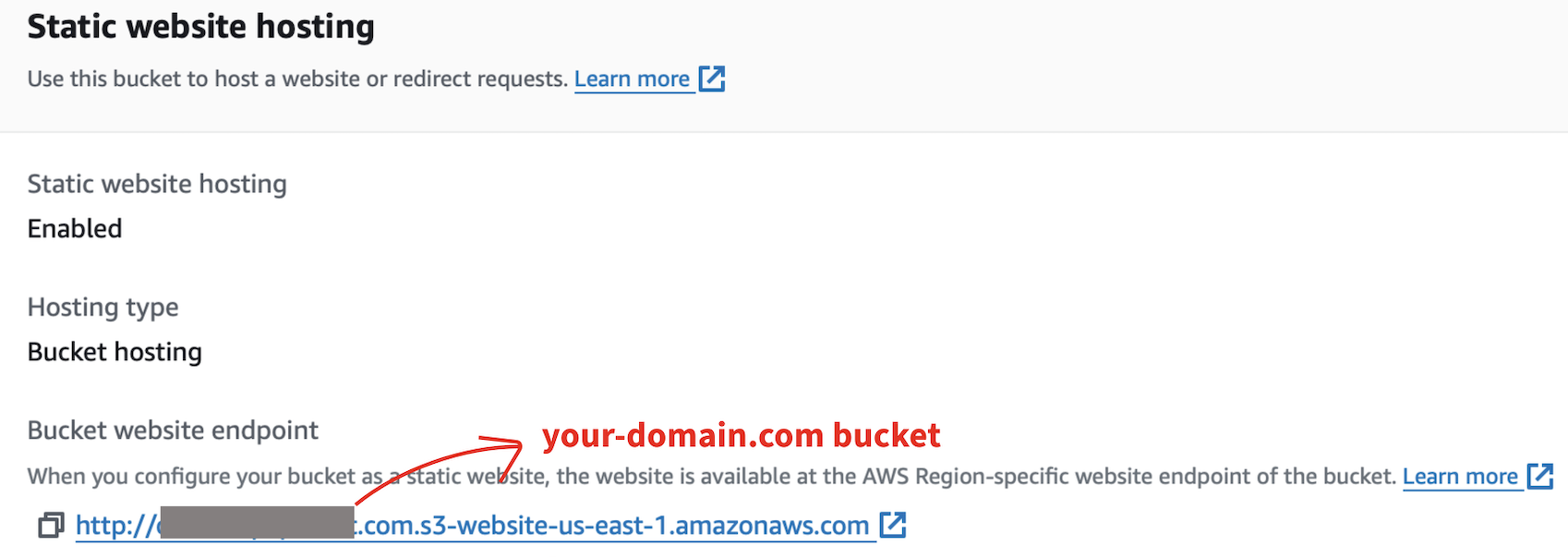

Bucket configuration for static website hosting

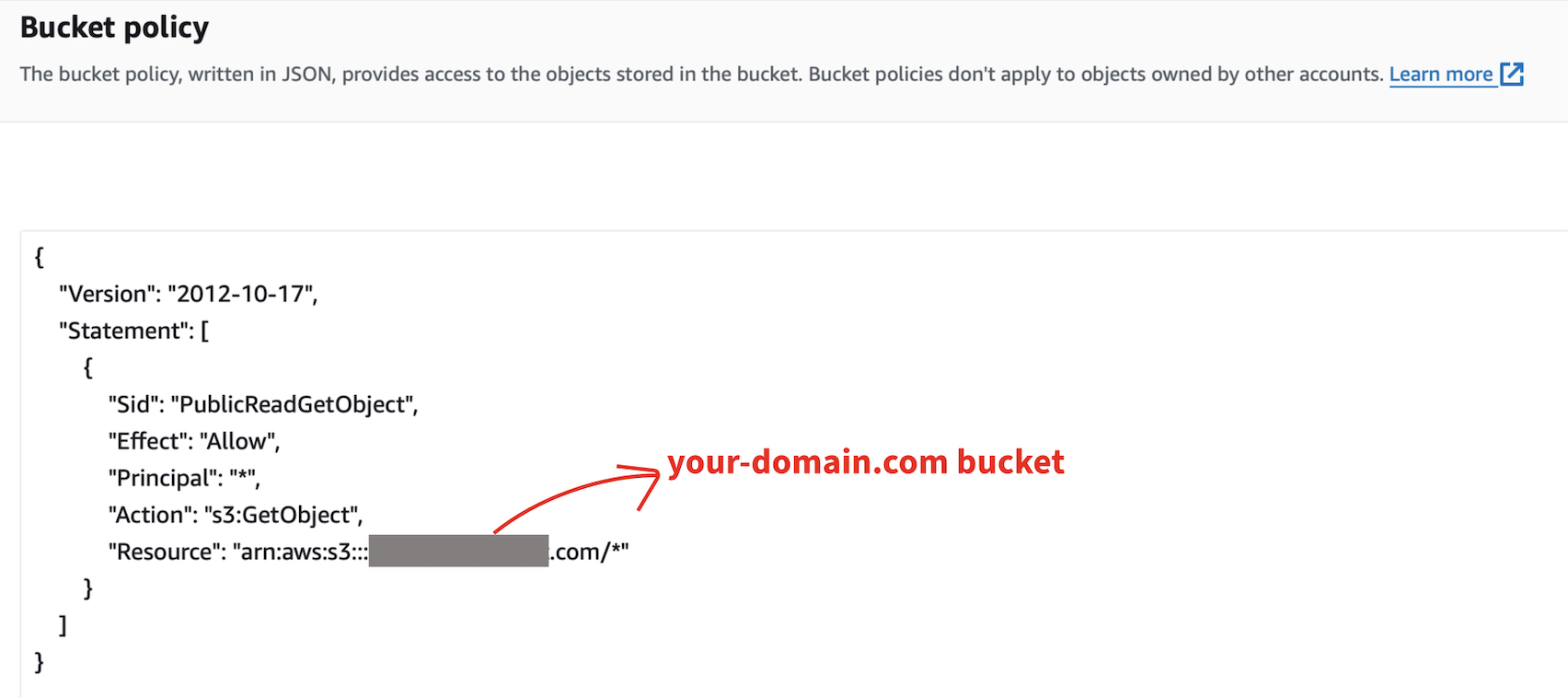

Bucket policy

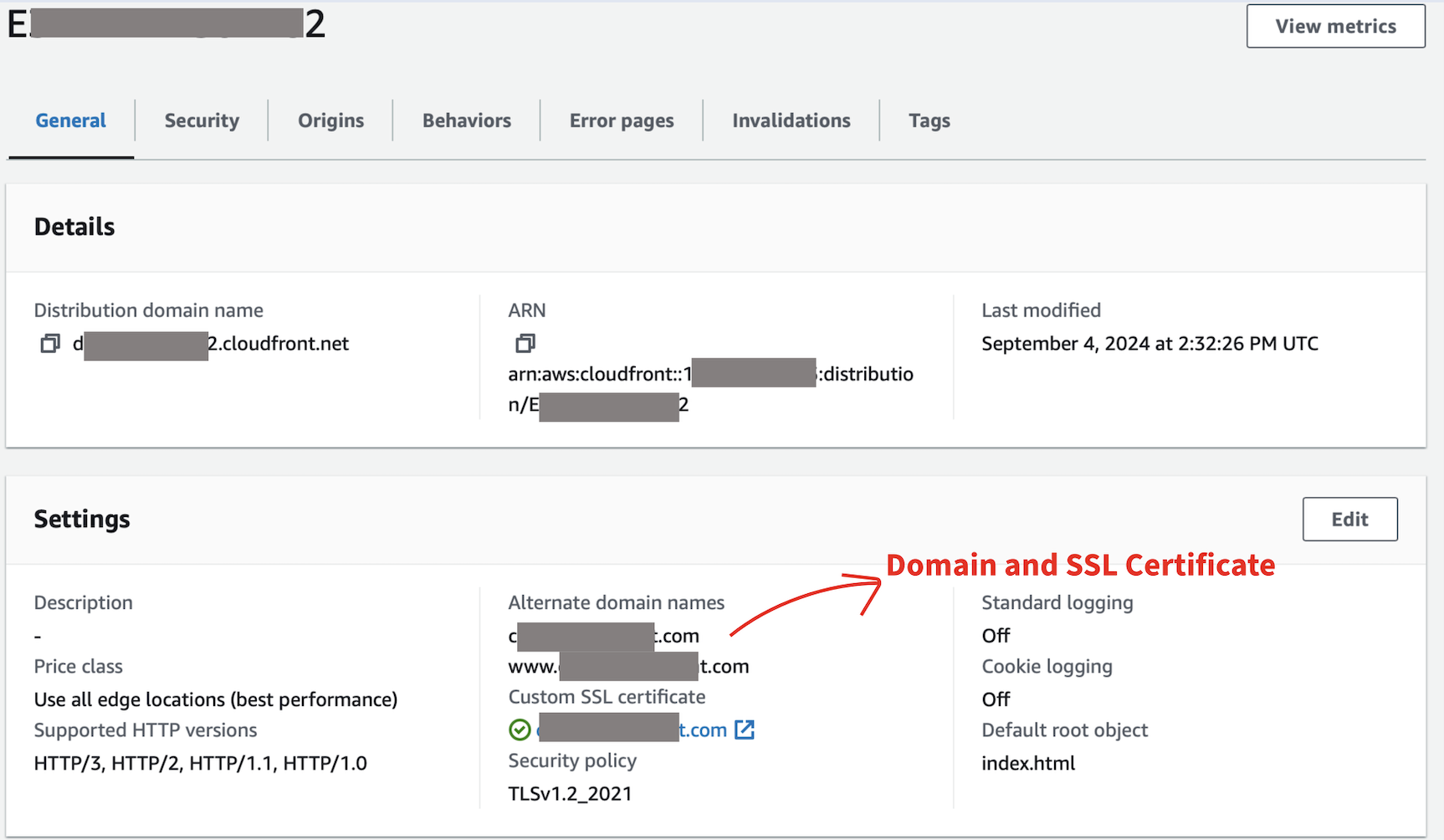

CloudFront Distribution

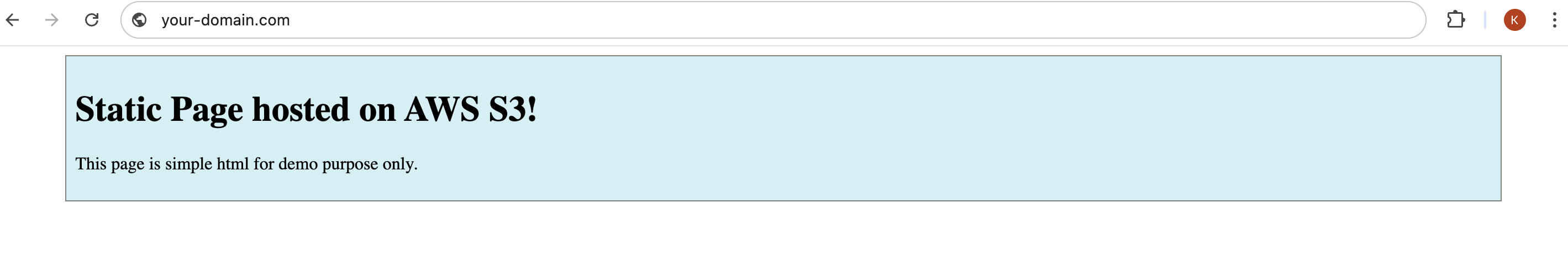

Test your domain name

Cleanup

  • Delete CDK stack.
cdk destroy
  • Manually delete your-domain.com bucket.
  • Manually delete hosted zone and domain certificate.

Thanks a lot for your reading!
