AWS API Gateway with DynamoDB

AWS Workshop

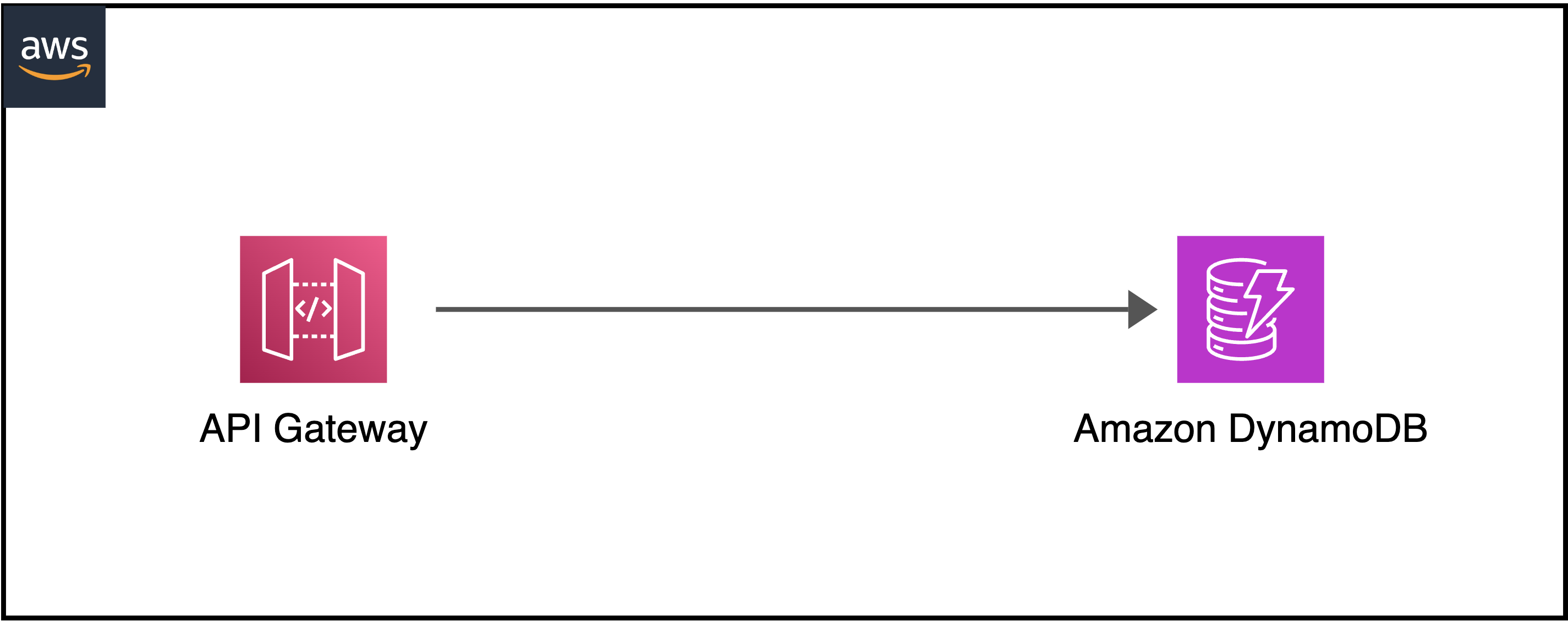

Deploy AWS API Gateway to read and update DynamoDB without Lambda.

How to create an Amazon API Gateway REST API that integrates with an Amazon DynamoDB table to read and update data?

Introduction​

This topic shows step-by-step how to create the Amazon API Gateway REST API that integrates with an Amazon DynamoDB table named resumeTable. The API integrates directly with the DynamoDB API and supports GetItem and PutItem actions. All codes created by the CDK (Python) to implement the activities such as creating DynamoDB table, API Gateway with DynamoDB integration, providing all least privilege IAM roles and mapping templates for integration request & response.

Requirements​

Get started with CDK​

Create and go to the working folder, then initialize the CDK Python project from CLI Terminal.

mkdir resume-apigw-dynamodb
cd resume-apigw-dynamodb
cdk init app --language python

Activate Python environment.

source .venv/bin/activate

Install the required packages.

pip install -r requirements.txt

Project structure​

If configured properly, the project structure will be shown under the working directory \resume-apigw-dynamodb as below:

resume-apigw-dynamodb
├── data
│   └── resume.json
├── integration
│   ├── get_integration_request
│   ├── get_integration_response
│   └── put_integration_request
├── resume_apigw_dynamodb
│   ├── __init__.py
│   └── resume_apigw_dynamodb_stack.py
├── app.py
├── README.md
└── requirements.txt

Project structure rundown​

  • /data/ - Contains json file which prodides all information needed to create the AWS DynamoDB table.
  • /integration/ - for creating mapping templates.
  • /resume_apigw_dynamodb/ - for creating the deployment stack.
  • /app.py - main project function.
  • /README.md - Introduction and Instructions.
  • /requirements.txt - for required packages' installation.

Stack format and codes​

Import necessary packages to deploy.
resume_apigw_dynamodb_stack.py
from aws_cdk import (
    Stack,
    CfnOutput,
    aws_dynamodb,
    aws_apigateway,
    aws_iam
)
from constructs import Construct
class ResumeApiGwStack(Stack):
    def __init__(self, scope: Construct, construct_id: str, **kwargs) -> None:
        super().__init__(scope, construct_id, **kwargs)
        # Code start here

Provision DynamoDB table​

AWS DynamoDB

Create the DynamoDB table with partition key:id, type:string and provisioned read/write capacity:1.

resume_apigw_dynamodb_stack.py
resume_dynamodb = aws_dynamodb.Table(self, "resumeTable",
   partition_key=aws_dynamodb.Attribute(
      name="id",
      type=aws_dynamodb.AttributeType.STRING),
   billing_mode=aws_dynamodb.BillingMode.PROVISIONED,
   read_capacity=1,
   write_capacity=1
)

Creating API Gateway​

REST API Gateway
resume_apigw_dynamodb_stack.py
resume_api = aws_apigateway.RestApi(self, 'resumeApiGW',
    endpoint_types=[aws_apigateway.EndpointType.REGIONAL],
    default_method_options=aws_apigateway.MethodOptions(
        method_responses=[aws_apigateway.MethodResponse(
            status_code="200"
        )]
    )
)

Grant the IAM role for API Gateway to read or write to DynamoDB​

GET/PUT Permission
resume_apigw_dynamodb_stack.py
rgetputitem_apigw_policy = aws_iam.Policy(self, "GetPutItemApiGWPolicy",
    statements=[aws_iam.PolicyStatement(
        actions=["dynamodb:GetItem", "dynamodb:PutItem"],
        effect=aws_iam.Effect.ALLOW,
        resources=[resume_dynamodb.table_arn]
    )]
)
getputitem_apigw_role = aws_iam.Role(self, "GetPutItemApiGWRole",
    assumed_by=aws_iam.ServicePrincipal("apigateway.amazonaws.com")
)
getputitem_apigw_role.attach_inline_policy(getputitem_apigw_policy)

JSON file format​

RESUME DATA
resume.json
{
    "id": <ID>,
    "name": <NAME>,
    "title": <TITLE>,
    "email": <EMAIL>,
    "location": <LOCATION>,
    "profiles": [
      {
        "network": <NETWORK>,
        "username": <USERNAME>,
        "url": <LINK>
      }
    ],
    "skills": [
      {
        "title": <SKILL NAME>,
        "score": <SCORE>,
        "rating": <LEVEL>
      }
    ],
    "languages": [
      {
        "language": <LANGUAGE>,
        "score": <SCORE>,
        "rating": <RATING>
      }
    ],
    "summary": [
      {
        "para": <DESCRIPTION>
      }
    ],
    "experience": {
      "current": {
        "role": <CAREER ROLE>,
        "from": <FROM>,
        "description": [
          {
            "li": <DESCRIPTION>
          }
        ]
      },
      "past": [
        {
          "role": <CAREER ROLE>,
          "duration": <FROM TO>,
          "description": [
            {
              "li": <DESCRIPTION>
            }
          ]
        }
      ]
    },
    "certificates": [
      {
        "title": <CERT NAME>,
        "valid": <VALIDITY>,
        "link": <LINK>,
        "description": <DESCRIPTION>
      }
    ],
    "education": [
      {
        "title": <CERT NAME>,
        "valid": <VALIDITY>,
        "description": <DESCRIPTION>
      }
    ]
  }

Mapping templates for integration​

Save all 03 below files in folder integration.

GET method integration request​

VTL

Apache’s Velocity Templating Language (VTL)

get_integration_request
{
    "TableName": "$input.params('tablename')",
    "Key": {
        "id": {"S": "$input.params('id')"}
    }
}

GET method integration response​

VTL

Apache’s Velocity Templating Language (VTL)

get_integration_response
#set($inputRoot = $input.path('$'))
{
  "id": "$inputRoot.Item.id.S",
  "name": "$inputRoot.Item.name.S",
  "title": "$inputRoot.Item.title.S",
  "email": "$inputRoot.Item.email.S",
  "location": "$inputRoot.Item.location.S",
  "profiles": [
    #foreach($elem in $inputRoot.Item.profiles.L)
    {
        "network": "$elem.M.network.S",
        "username": "$elem.M.username.S",
        "url": "$elem.M.url.S"
    }#if($foreach.hasNext),#end
    #end
  ],
  "skills": [
    #foreach($elem in $inputRoot.Item.skills.L)
    {
        "title": "$elem.M.title.S",
        "score": "$elem.M.score.S",
        "rating": "$elem.M.rating.S"
    }#if($foreach.hasNext),#end
    #end
  ],
  "languages": [
    #foreach($elem in $inputRoot.Item.languages.L)
    {
        "language": "$elem.M.language.S",
        "score": "$elem.M.score.S",
        "rating": "$elem.M.rating.S"
    }#if($foreach.hasNext),#end
    #end
  ],
  "summary": [
    #foreach($elem in $inputRoot.Item.summary.L)
    {
        #foreach($key in $elem.M.keySet())
            #set($value = $elem.M.get($key).S)
            "$key": "$value"#if($foreach.hasNext),#end
        #end
    }
    #if($foreach.hasNext),#end
    #end
  ],
  "experience": {
    "current": {
        "role": "$inputRoot.Item.experience.M.current.M.role.S",
        "from": "$inputRoot.Item.experience.M.current.M.from.S",
        "description": [
            #foreach($elem in $inputRoot.Item.experience.M.current.M.description.L)
            {
                "li": "$elem.M.li.S"
            }#if($foreach.hasNext),#end
            #end
        ]
    },
    "past": [
        #foreach($elem in $inputRoot.Item.experience.M.past.L)
        {
            "role": "$elem.M.role.S",
            "duration": "$elem.M.duration.S",
            "description": [
                #foreach($item in $elem.M.description.L)
                {
                    "li": "$item.M.li.S"
                }#if($foreach.hasNext),#end
                #end
            ]
        }#if($foreach.hasNext),#end
        #end
    ]
  },
  "certificates": [
    #foreach($elem in $inputRoot.Item.certificates.L)
    {
        "title": "$elem.M.title.S",
        "valid": "$elem.M.valid.S",
        "link": "$elem.M.link.S",
        "description": "$elem.M.description.S"
    }#if($foreach.hasNext),#end
    #end
  ],
  "education": [
    #foreach($elem in $inputRoot.Item.education.L)
    {
        "title": "$elem.M.title.S",
        "valid": "$elem.M.valid.S",
        "description": "$elem.M.description.S"
    }#if($foreach.hasNext),#end
    #end
  ]
}

POST method integration request​

VTL

Apache’s Velocity Templating Language (VTL)

put_integration_request
{
    "TableName": "$input.params('tablename')",
    "Item": {
        "id": {"S": "$input.path('$.id')"},
        "name": {"S": "$input.path('$.name')"},
        "title": {"S": "$input.path('$.title')"},
        "email": {"S": "$input.path('$.email')"},
        "location": {"S": "$input.path('$.location')"},
        "profiles": {"L": [
            #foreach($elem in $input.path('$.profiles'))
            {"M": {
                #foreach($key in $elem.keySet())
                    #set($value = $elem.get($key))
                    "$key": { "S": "$value" }#if($foreach.hasNext()),#end
                #end
            }
            }#if($foreach.hasNext()),#end
            #end
            ]
        },
        "skills": {"L": [
            #foreach($elem in $input.path('$.skills'))
            {"M": {
                #foreach($key in $elem.keySet())
                    #set($value = $elem.get($key))
                    "$key": { "S": "$value" }#if($foreach.hasNext()),#end
                #end
            }
            }#if($foreach.hasNext()),#end
            #end
            ]
        },
        "languages": {"L": [
            #foreach($elem in $input.path('$.languages'))
            {"M": {
                #foreach($key in $elem.keySet())
                    #set($value = $elem.get($key))
                    "$key": { "S": "$value" }#if($foreach.hasNext()),#end
                #end
            }
            }#if($foreach.hasNext()),#end
            #end
            ]
        },
        "summary":{
            "L": [
                #foreach($elem in $input.path('$.summary'))
                {
                    "M": {
                        #foreach($key in $elem.keySet())
                            #set($value = $elem.get($key))
                            "$key": { "S": "$value" }#if($foreach.hasNext()),#end
                        #end
                    }
                }#if($foreach.hasNext()),#end
                #end
            ]
        },
        "experience": {
            "M": {
                "current": {
                    "M": {
                        "role": {"S": "$input.path('$.experience.current.role')"},
                        "from": {"S": "$input.path('$.experience.current.from')"},
                        "description": {
                            "L": [
                                #foreach($elem in $input.path('$.experience.current.description'))
                                {
                                    "M": {
                                        #foreach($key in $elem.keySet())
                                        #set($value = $elem.get($key))
                                        "$key": { "S": "$value" }#if($foreach.hasNext()),#end
                                        #end
                                    }
                                }#if($foreach.hasNext()),#end
                                #end
                            ]
                        }
                    }
                },
                "past": {
                    "L": [
                        #foreach($elem in $input.path('$.experience.past'))
                        {
                            "M": {
                                "role": {"S": "$elem.role"},
                                "duration": {"S": "$elem.duration"},
                                "description": {
                                    "L": [
                                        #foreach($description in $elem.description)
                                        {
                                            "M": {
                                                #foreach($key in $description.keySet())
                                                #set($value = $description.get($key))
                                                "$key": { "S": "$value" }#if($foreach.hasNext()),#end
                                                #end
                                            }
                                        }#if($foreach.hasNext()),#end
                                        #end
                                    ]
                                }
                            }
                        }
                        #if($foreach.hasNext()),#end
                        #end
                    ]
                }
            }
        },
        "certificates": {
            "L": [
                #foreach($elem in $input.path('$.certificates'))
                {
                    "M": {
                        #foreach($key in $elem.keySet())
                            #set($value = $elem.get($key))
                            "$key": { "S": "$value" }#if($foreach.hasNext()),#end
                        #end
                    }
                }
                #if($foreach.hasNext()),#end
                #end
            ]
        },
        "education": {
            "L": [
                #foreach($elem in $input.path('$.education'))
                {
                    "M": {
                        #foreach($key in $elem.keySet())
                            #set($value = $elem.get($key))
                            "$key": { "S": "$value" }#if($foreach.hasNext()),#end
                        #end
                    }
                }
                #if($foreach.hasNext()),#end
                #end
            ]
        }
    }
}

Create variables to read mapping templates​

INTEGRATION FILE READ
resume_apigw_dynamodb_stack.py
# Read mapping template
get_integration_request = open("./integration/get_integration_request", "r")
get_integration_request_read = get_integration_request.read()
get_integration_request.close()

get_integration_response = open("./integration/get_integration_response", "r")
get_integration_response_read = get_integration_response.read()
get_integration_response.close()

put_integration_request = open("./integration/put_integration_request", "r")
put_integration_request_read = put_integration_request.read()
put_integration_request.close()

API Gateway with DynamoDB integrated​

GetItem action, CORS enabled, mapping templates for integration request & response​

INTEGRATION CONFIGURATION
resume_apigw_dynamodb_stack.py
getitem_aws_integration = aws_apigateway.AwsIntegration(
    service="dynamodb",
    action="GetItem",
    options=aws_apigateway.IntegrationOptions(
        credentials_role=getputitem_apigw_role,
        passthrough_behavior=aws_apigateway.PassthroughBehavior.WHEN_NO_TEMPLATES,
        request_templates={"application/json": get_integration_request_read},
        integration_responses=[aws_apigateway.IntegrationResponse(
            status_code="200",
            response_parameters={"method.response.header.Access-Control-Allow-Origin": "'*'"},
            response_templates={"application/json": get_integration_response_read}
        )]
    )
)

PutItem action, CORS enabled, mapping templates for integration request​

INTEGRATION CONFIGURATION
resume_apigw_dynamodb_stack.py
putitem_aws_integration = aws_apigateway.AwsIntegration(
    service="dynamodb",
    action="PutItem",
    options=aws_apigateway.IntegrationOptions(
        credentials_role=getputitem_apigw_role,
        passthrough_behavior=aws_apigateway.PassthroughBehavior.WHEN_NO_TEMPLATES,
        request_templates={"application/json": put_integration_request_read},
        integration_responses=[aws_apigateway.IntegrationResponse(
            status_code="200",
            response_parameters={"method.response.header.Access-Control-Allow-Origin": "'*'"})]
    )
)

Configure and add GET method​

Get method added
resume_apigw_dynamodb_stack.py
get_method_response = [aws_apigateway.MethodResponse(
    status_code="200",
    response_parameters={"method.response.header.Access-Control-Allow-Origin": True}
)]
resume_api.root.add_method("GET",
    integration=getitem_aws_integration,
    method_responses=get_method_response
)

Configure and add POST method​

Post method added
resume_apigw_dynamodb_stack.py
post_method_response = [aws_apigateway.MethodResponse(
    status_code="200",
    response_parameters={"method.response.header.Access-Control-Allow-Origin": True}
)]
resume_api.root.add_method("POST",
    integration=putitem_aws_integration,
    method_responses=post_method_response
)

Output value for DynamoDB table and API Gateway production​

Output value required to perform the API Gateway execution.

CfnOutput(self, "TableName", value=resume_dynamodb.table_name)
CfnOutput(self, "APIUrl", value=resume_api.url)

Test and deploy application​

# Test and create CloudFormation template
cdk synth

# Deploy appliction
cdk deploy

Evaluation​

After deploying successfully, you can use output value to test both read and write to the DynamoDB table and manually adjust the input or output as per your needs. The URL looks like as below:

# Read DynamoDB table url
url = $(APIUrl.value?tablename=TableName.value&id=<YOUR ID>)

# Write DynamoDB table url
url = $(APIUrl.value?tablename=TableName.value)

Cleanup​

cdk destroy

You should manually delete DynamoDB table after Stack deleted.

Thanks for your reading!
