Deploy, Test and Cleanup

Deployment

• CDK deployment from CLI Terminal.

# CDK template output
cdk synth --all

# Deploy all stacks - Need to wait a couple minutes to let 1st stack complete with docker image deployed.
cdk deploy --all

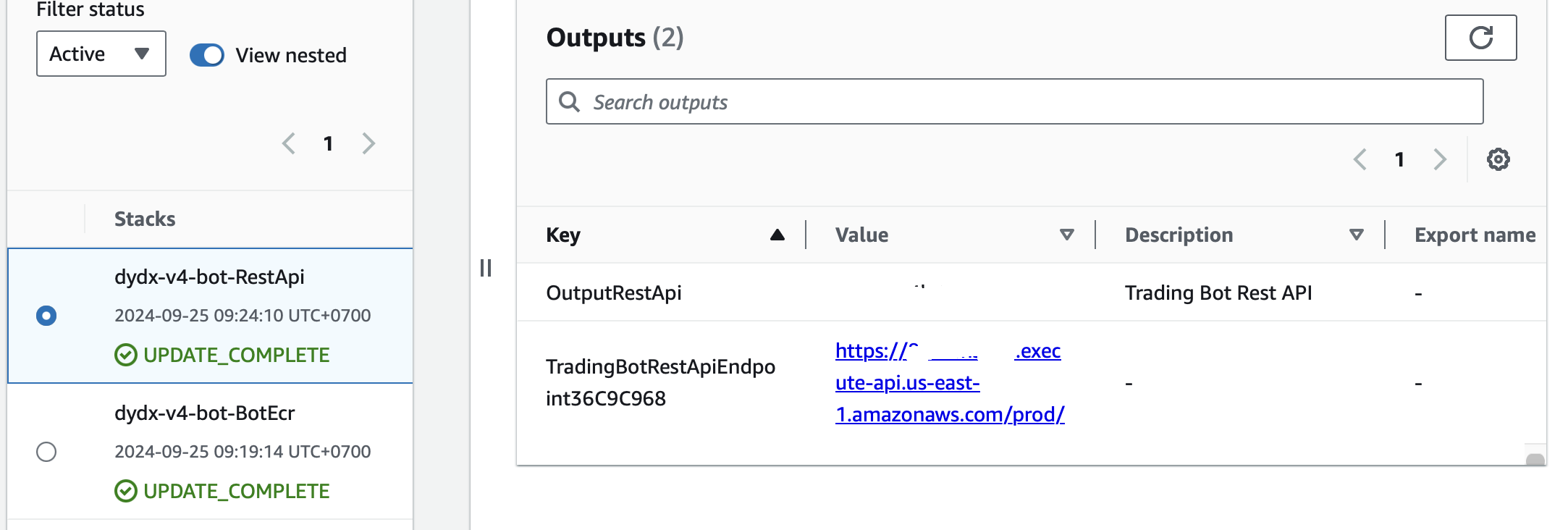

• Record the REST API URL output to test in the previous step.

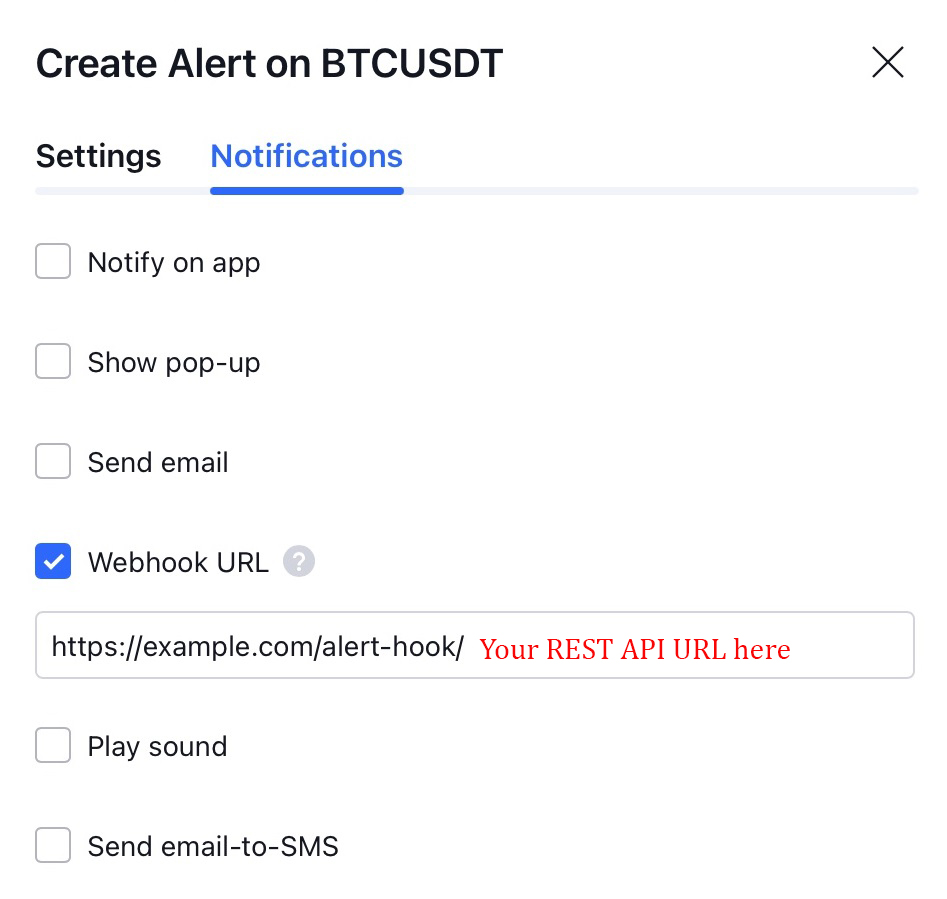

• Fill the above REST API URL to TradingView webhook together with the alert prepared in Build related services for AWS.

Testing

Post REST API URL

curl -X POST https://<YOUR_API_ID>.execute-api.<REGION_NAME>.amazonaws.com/prod/webhook \
  -H 'content-type: application/json' \
  -d '{"order_strategy": "Bollinger", "signal_time": "2024-09-26", "signal_price": "2600", "market_pair": "ETHUSD.P", "order_side": "buy", "order_size": "0.001"}'

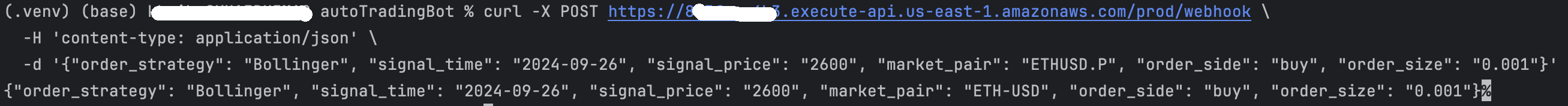

• And the result shown below:

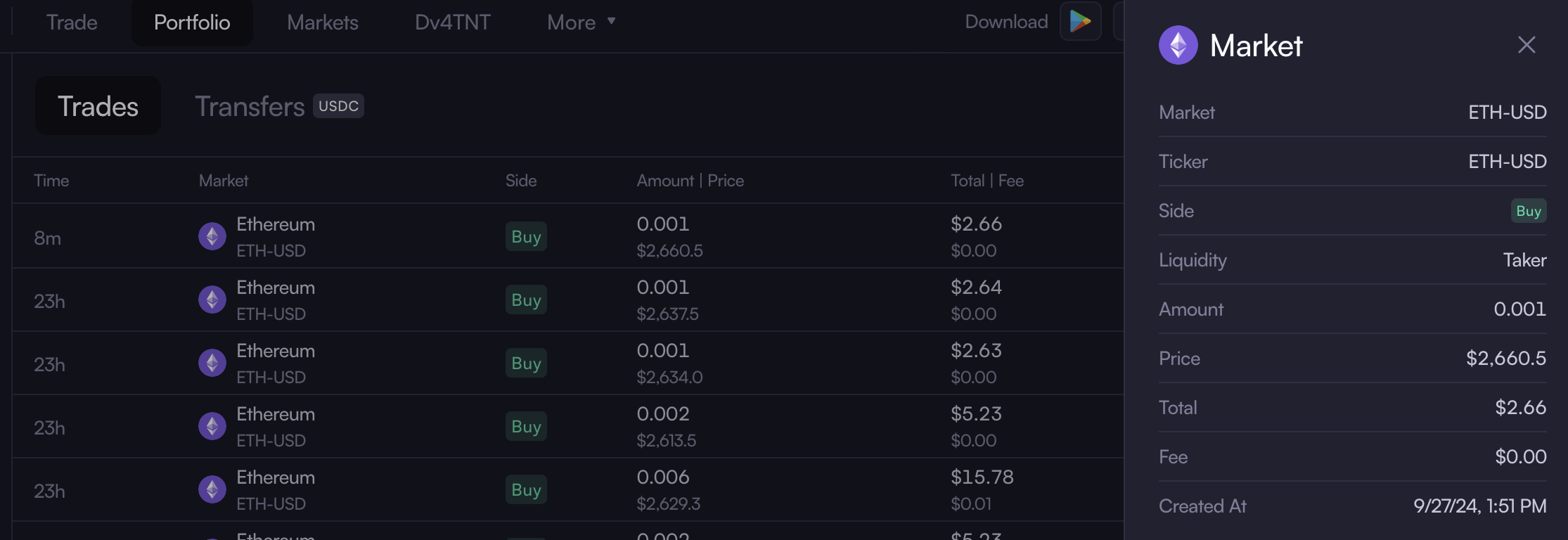

• From the exchange platform:



• From Mintscan dYdX chain explorer:

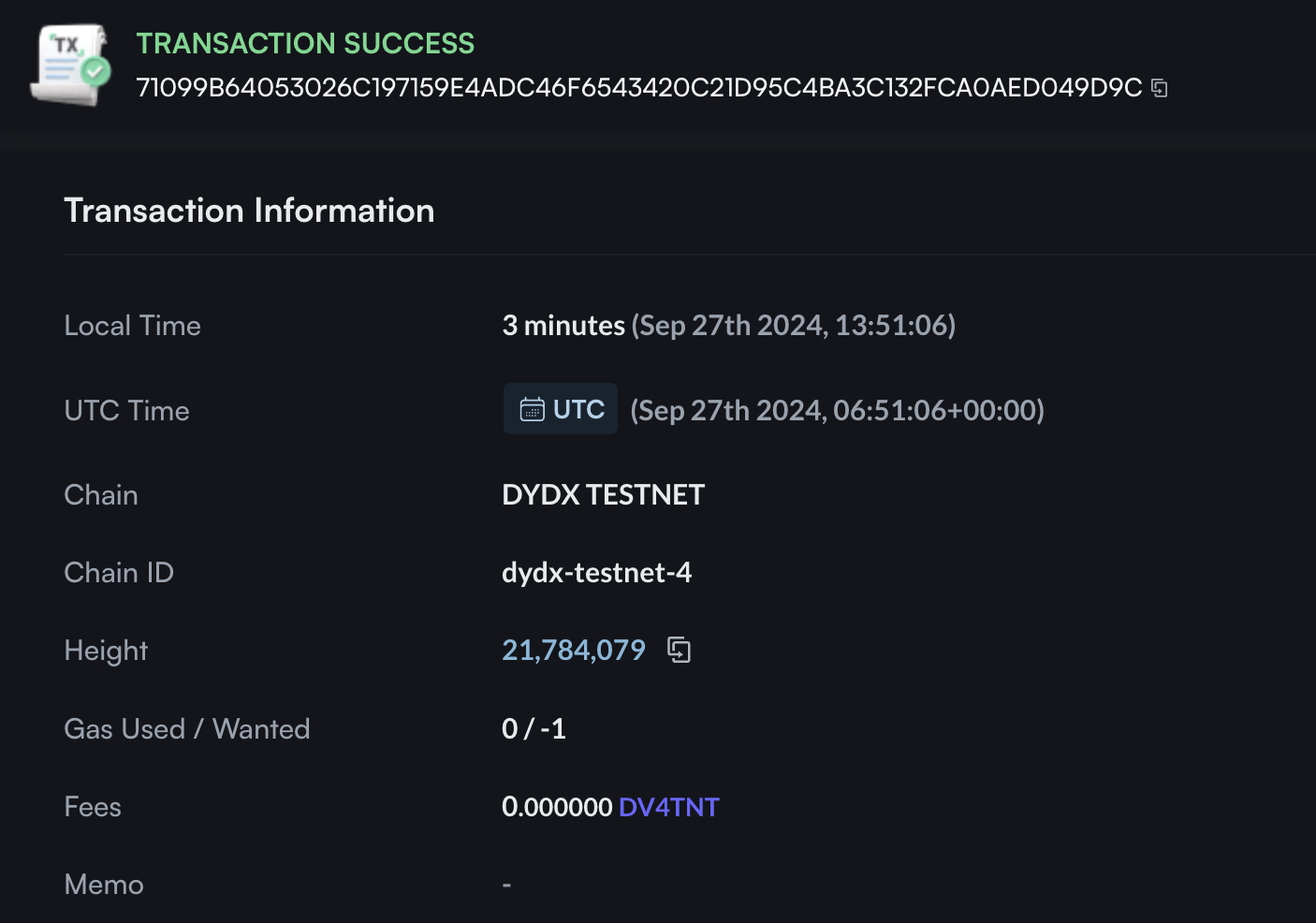

  • Transaction detail

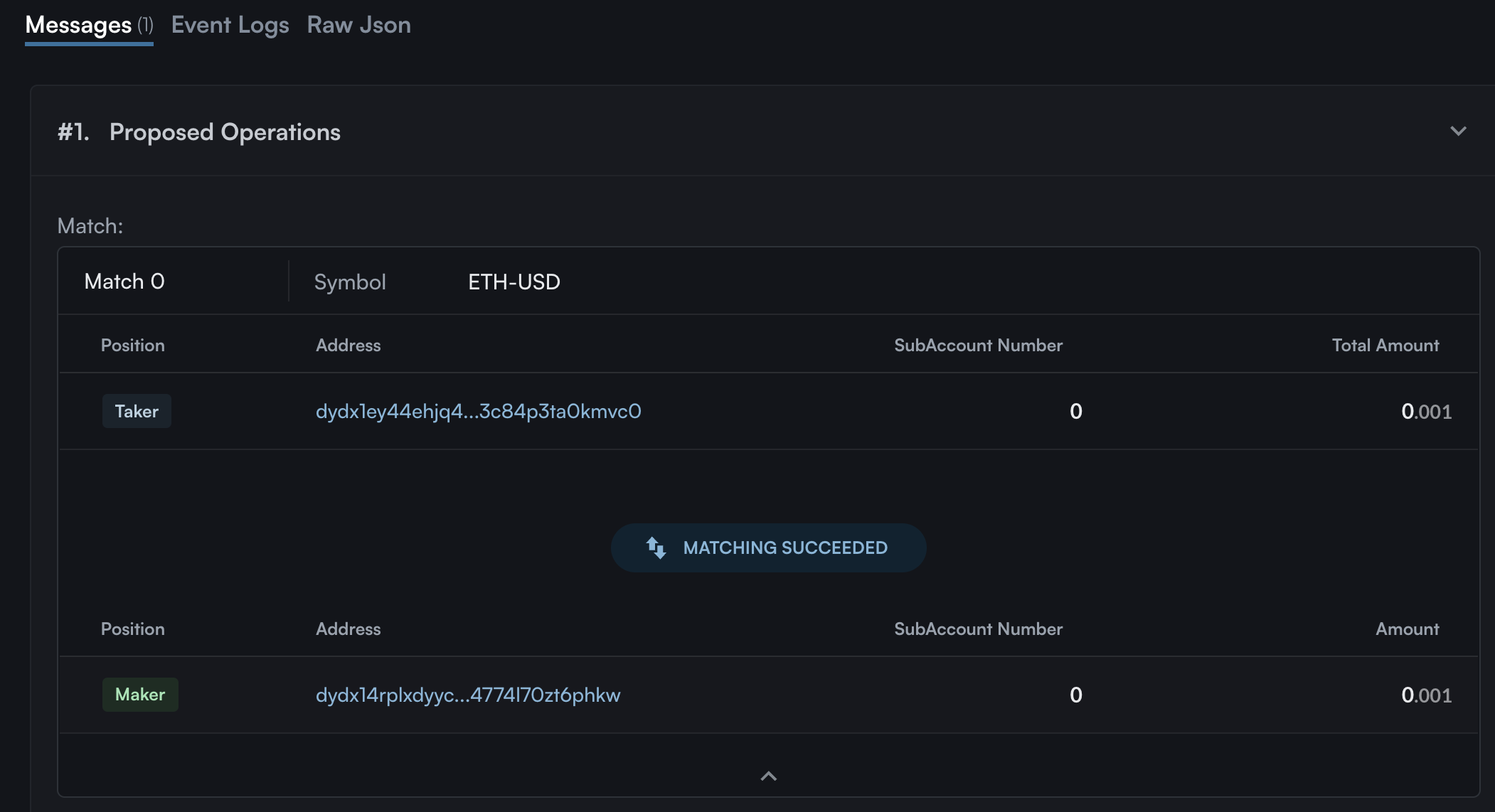

  • Transaction message

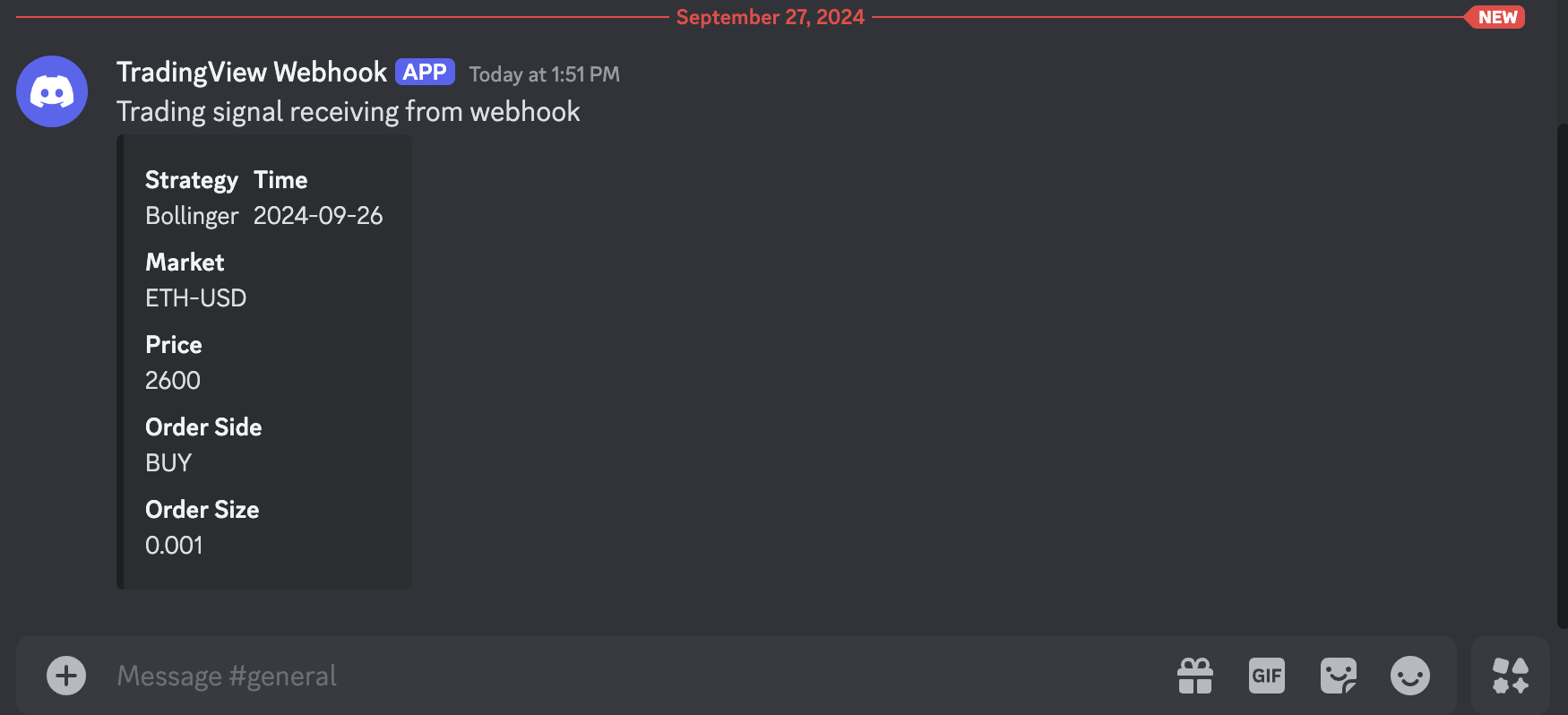

• From Discord message:



GitHub commit and CodeBuild

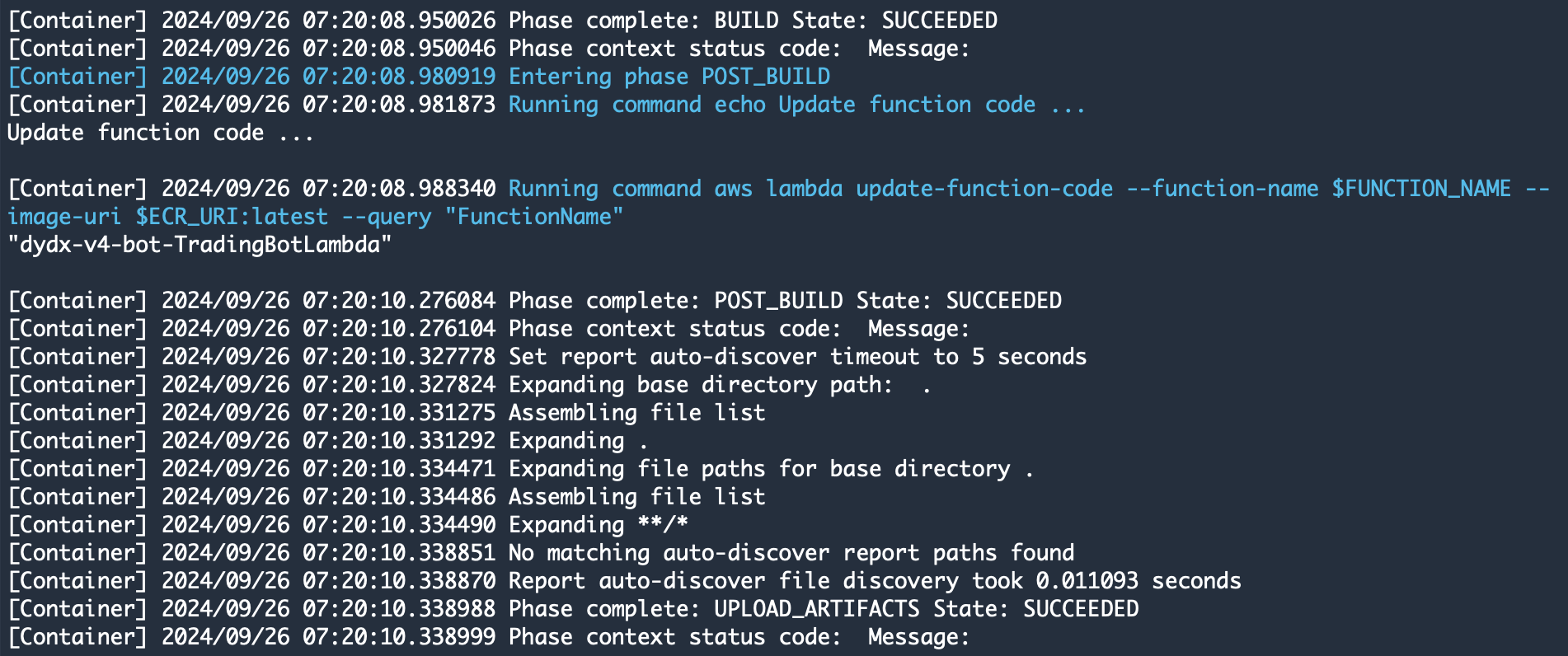

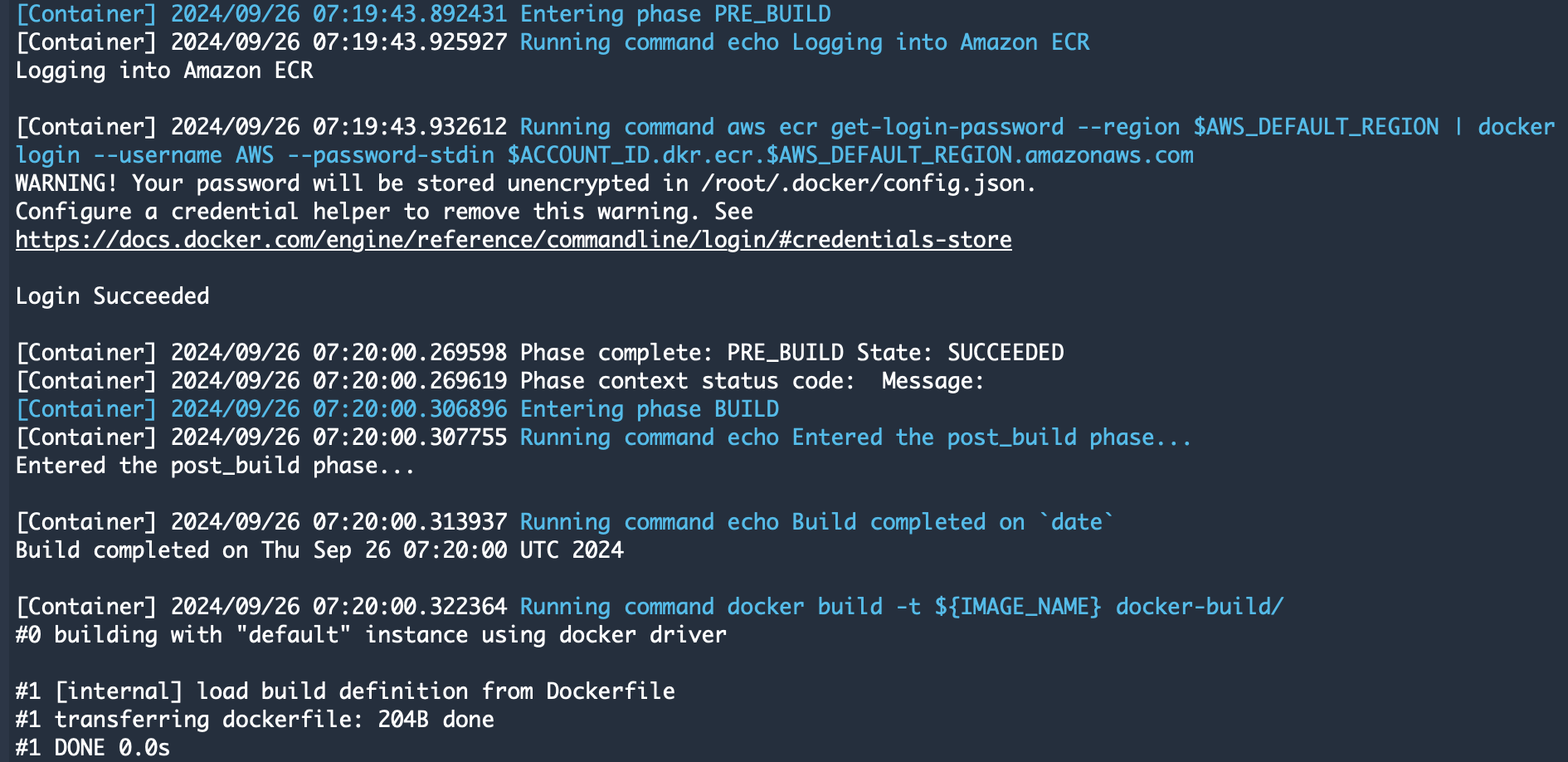

Whenever you update code and commit on GitHub, CodeBuild will process automatically and build logs look like below:

Cleanup

• Manually delete objects in project bucket.
• Manually delete all images in ECR.
• CDK cleanup all stacks by CLI as below:

cdk destroy --all
